These extreme quality, high output, high performance heavy duty alternators both look great, work great and are extremely

durable. The Reactor™ alternator is not just another stocker in a pretty package. The gleaming polished chrome plated or optional vintage natural aluminum housing of the Reactor™ hides a super heavy duty power plant that makes a whopping 100 amps at fast idle (1), withstands ultra high RPM's, handles brutal current load demands and does it all while not requiring any external regulators or wiring other than one single wire going from this alternator to the battery. That's it! Compact, potent, powerful, durable and reliable all in one package. The Reactor™ Bolts right on for the specific applications available and works with virtually any existing electrical system or wiring! For more information on the Reactor™, read the detailed specs below...

the Reactor-100™ FEATURES . . .
*   Heavy duty components for severe conditions
*   Designed for high revving performance engines
*   Provides full output capacity even at idle (1)
*   Self regulated eliminates voltage regulators
*   Fully self contained - Regulator on board
*   Regulator easily serviceable without disassembly
*   One wire hookup eliminates all other wiring
*   Just connect one 8ga. wire to the battery-that's it!
*   Included connection for dash mount warn light
*   Noise canceling aggressive cooling fan
*   V-belt deep grooved racing pulley included
*   Polished gleaming Chrome or Natural finish
*   Mounts in stock location - No modifications
*   Direct replacement for Ford small case alternator
*   Original vintage style Ford small case alternator

the Reactor-100™ SPECS . . .
*   100 Amp output @ 1,475 rpm (2)
     (most alternators need 2,500-3,500 to achieve full their
          output, generating less than 1/4 at idle)
  (1)  =  fast idle based on 1,475 rpms    (2)  =  based on an 8" diameter crank pulley

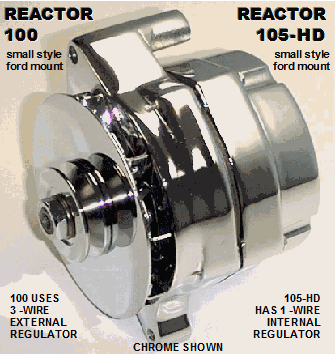

the Reactor 105-HD™ FEATURES . . .
*   Super Heavy Duty for extreme conditions
*   Designed for high revving performance engines
*   Provides full output capacity even at idle (1)
*   Self regulated eliminates voltage regulators
*   Fully self contained - Internally regulated
*   One wire hookup eliminates all other wiring
*   Just connect one 8ga. wire to the battery-that's it!
*   Shrouded high capacity low noise cooling fan
*   V-belt deep grooved racing pulley included
*   Polished gleaming Chrome plated finish
*   Mounts in stock location - No modifications
*   Direct replacement for Ford small case alternator
*   Hybrid Design Ford small style front half mated
     to GM style rear half - Super Smooth Show Look!

the Reactor 105-HD™ SPECS . . .
*   105 Amp output @ 1,475 rpm (2)
     (most alternators need 2,500-3,500 to achieve full
      their output, generating less than 1/4 at idle)
(1)  =  fast idle based on 1,475 rpms
(2)  =  based on an 8" diameter crank pulley

...More on the
Reactor™ Alternators

This very special alternator out performs and outlasts virtually anything in it's category on the market. The extra high output of the Reactor™ at fast idle (1) feeds all the electrical needs for electric fans, high output ignitions, engine management systems, radios, heaters and high output headlamps. Most other alternators only produce a fraction of their rated output at idle and have to be revved to create their maximum output, and many of the other so called high output 100 amp ones only put out 15-20 amps at idle, with barely put out their maximum current when revved to 2500-3000 rpm. This does little to help while in traffic, parades and especially cruising in high gear on the highway at a low RPM.

This under hood Power Plant solves all those problems and more. The Reactor-100™ self regulated alternator eliminates the need for an external voltage regulator, or any other external charging system wiring. Unlike converted GM internally regulated versions, this compact onboard regulator is easily replaced without removing the alternator from the vehicle or even taking the unit apart! Solve ongoing charging system problems in one mighty stroke by installing this unit. All you need is one single wire going to your battery. That's it! It's as easy as that, and you can discard all your existing wiring!

Most high performance engines with radical camshafts idle between 1300-1500 rpms, however the below chart shows output at lower rpm's...

Alternator Comparison

And also unlike most other so-called "one wire" alternators that actually need a second wire from the key switch to "excite" the windings to start the current production, the Reactor™ is completely self contained and self excites the charging system as soon as  the engine is started and the alternator reaches it's energizing rpm (3). The alternator then  remains energized until the engine is shut down. This ensures there is no voltage draw while the engine is off, draining the battery. The Reactor™ also comes with an optional connection to retain the functionality of the dash light charging system warning indicator lamp. The Reactor™ alternator has stood up to demanding environments such as sand, mud, water and even the 400+ amp loads of a 12,000 pound winch as well as ultra-hi rpm revving racing engines!

footnotes:
(1)  =  fast idle based on 1,475 rpms
(3) Engine rpm may be different depending on pulley configuration and can be between 650-1500 rpm
