These custom crafted and strong yet super light weight stainless steel surge tanks for radiators get the job done cleanly, and with class. These ultra high quality pieces are made from some of the highest quality aluminum and are meticulously formed to exacting tolerances for a highly professional appearance high performance operation.

CHECK OUT
OUR BILLET
ALUMINUM
BREATHERS
(click left)

Stainless Steel
Shortcan Overflow/
Recovery Tank
pt.# CVRTSC

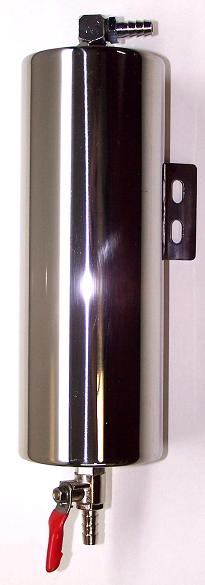

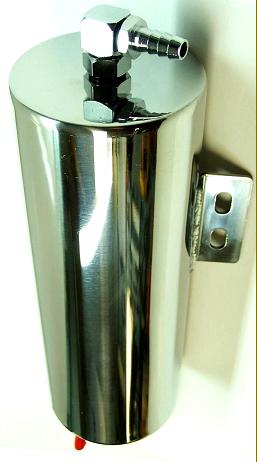

$89.95 1 qt. Lightweight Polished Stainless Steel with slip on nipple fittings. Excellent for use as a overflow and recovery for radiators and can be mounted just about anywhere. Fittings can be removed and AN fittings installed if desired. Comes with drain valve and mounting brackets. Use 3/8" I.D. hose top and bottom. 3/8" NPT threaded fitting at bottom where valve is installed.
11" overall length x 8.18" body length x 3.00" dia.
  1 qt. capacity

If using as just an overflow tank, run the top hose to the top of the tank and drain at the bottom. A .060" or larger hole must be drilled into the top to allow venting and the drain valve kept closed during operation. If using as an Overflow/Recovery tank, run the bottom hose to the radiator cap and keep the drain open at all times, and run a hose from the top down to the ground as and overflow escape for the overflow tank itself. In this configuration there is no need to drill a vent hole in the top of the tank.

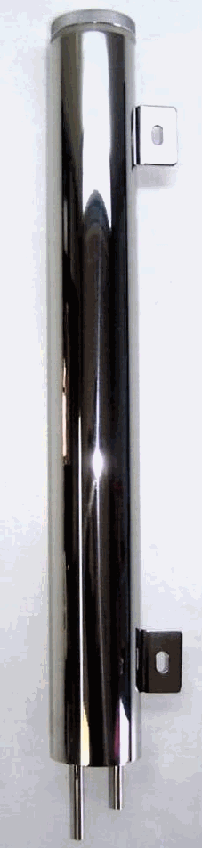

Stainless Steel
Thinline Overflow/Recovery Tank
pt.# CVRTTL

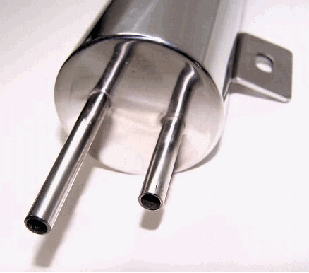

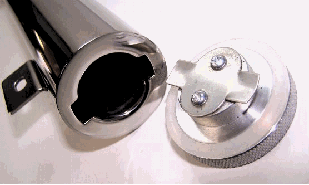

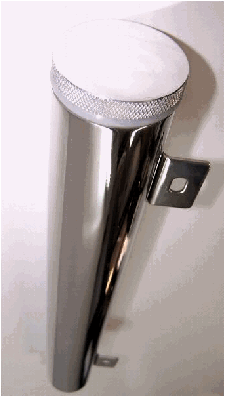

$89.95 1 qt. Lightweight Polished Stainless Steel with slip on nipple fittings. Excellent for use as a overflow and recovery for radiators and can be mounted right next to the radiator or in tight, slender spaces. Long tube at bottom extended all the way to the top of the tank inside to be used as an overflow vent, while the short side is connected to the radiator cap when used as an overflow recovery system. Screw on billet aluminum cap with mounting brackets. Use 1/4" I.D. hoses at bottom.
19" overall length x 17" body length x 2" dia.  1 qt. capacity

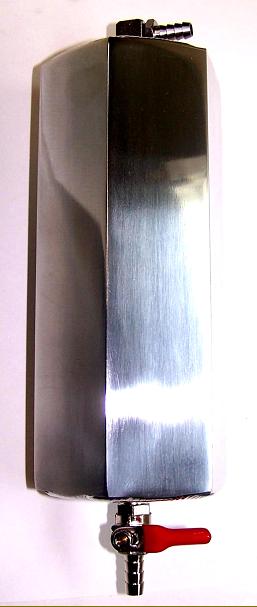

Billet Aluminum HEX Overflow/Recovery Tank
pt.# CVRTTBAL

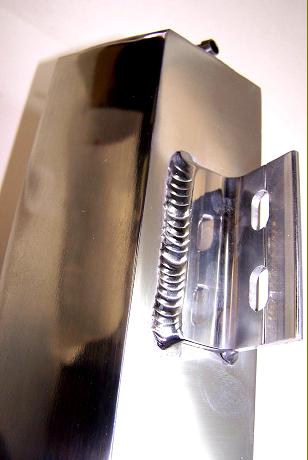

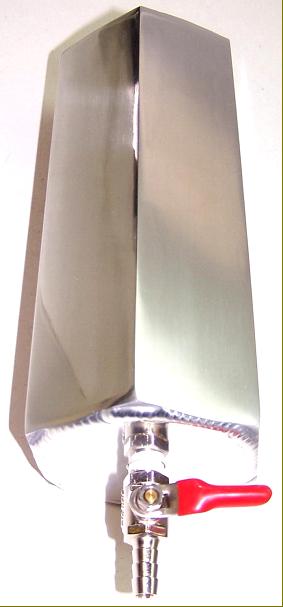

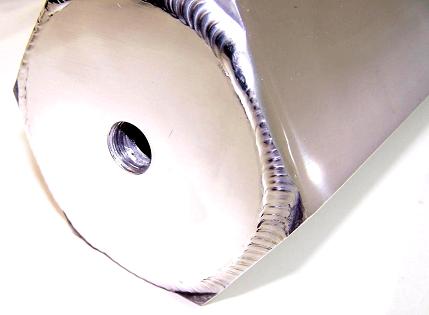

$89.95 1 qt. 1/4" thick heavy weight Polished Billet Aluminum with a unique hexigonal shape with slip on nipple fittings. High quality and meticulous TIG welds are polished smooth for spectacular looks! Excellent for use as an overflow tank or a recovery tank for radiators as well as other fluid holding chores, and this peaice is a beautiful enhancement for any engine bay. 3/8" NPT threaded fittings can be removed and AN fittings installed if desired. Comes with removable drain valve and mounting brackets. Use 3/8" I.D. hose top and bottom. With mounting brackets. 8.25" body length x 3.75" dia.  1 qt. capacity
