Effective, Real world, Race & Street Proven Parts & Accessories
HIGH POWER CUT-OFF's (click left)
TRIPLE PORT PANEL
This panel mount is weather sealed and houses a 12vdc locking marine grade power point/cigarette light plug as well as two 5v USB power/charging ports. Just a simple connection to a 12 volt power source supplies you with all of the above at your nearest convenience. (suggestion to use an in-line fuse holder for sale on this site)
Includes the custom Billet Aluminum Under Dash mount for a discreet, stealthy appearance hidden away under the dash. Available in your choice of three different styles… A) Powder Coated Interior Black, B) Natural Brushed Aluminum or C) Powder Coated with Recessed Face Plate.
NO EXTRA COST! and included with your Power Panel!
Product Dimensions Aluminum: 4.2" x 1.5" x 1.5" Product Dimensions Recessed Face Plate: 4.2" x 1.7" x 1.7"

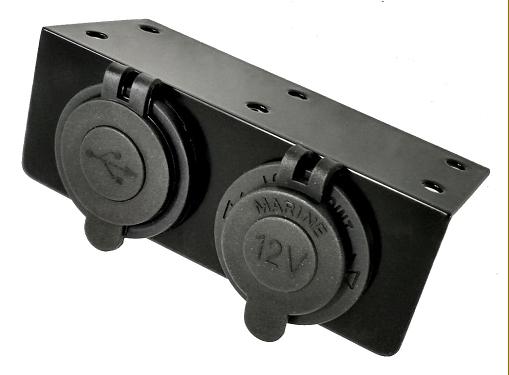

Black Powder Coated Aluminum (A)
Triple Port Power Point - STANDARD (1) 12v~20a Marine Locking Cigarette type outlet (1) 5v~2.1a USB (1) 5v~1.0a USB (1) Custom Billet Aluminum under dash mount Choose your choice of mounting appearance... A) Black powder coated face B) Brushed aluminum face C) Black coated with recessed face plate

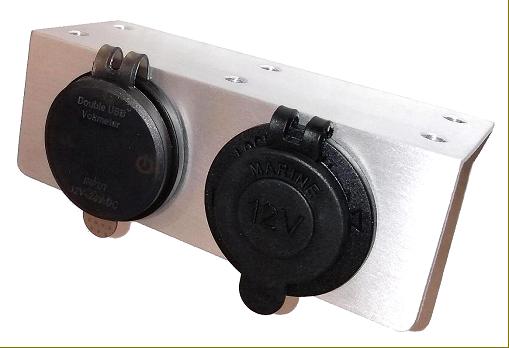

Natural Brushed Aluminum (B)
Triple Port Power Point w/ VOLT METER (1) 12v~20a Marine Locking Cigarette type outlet (2) 5v~3.0a USB (1) 12v Digital vehicle voltmeter on/off display (1) See through voltmeter cover (1) Custom Billet Aluminum under dash mount Choose your choice of mounting appearance... A) Black powder coated face B) Brushed aluminum face C) Black coated with recessed face plate
ABOUT THE VOLT METER:
Ammeters display the flow of current, either into or out of the battery. If you have a lot of current being pulled from the battery and the alternator is at maximum output, the flow is equalized and the ammeter needle read at "zero". In other words, the gauge is telling you nothing. However the addition of a volt gauge in conjunction with the ammeter tells you everything. For instance...
Coated Aluminum w/ Recessed Face plate (C)
Battery Condition / Engine Off 12.7 v = Fully charged 12.5 v = 80% charge 12.2 v = 60% charge 11.9 v = 40% charge 11.7 v = 20% charge 11.4 v = Fully discharged
Charge Condition / Running 13.2 v = Normal charge rate 13.8 v = Charge rate with load 14.4 v = Rate w/drained batt 14.7 v = Overcharge / drained anything other than the above indicates a charging problem

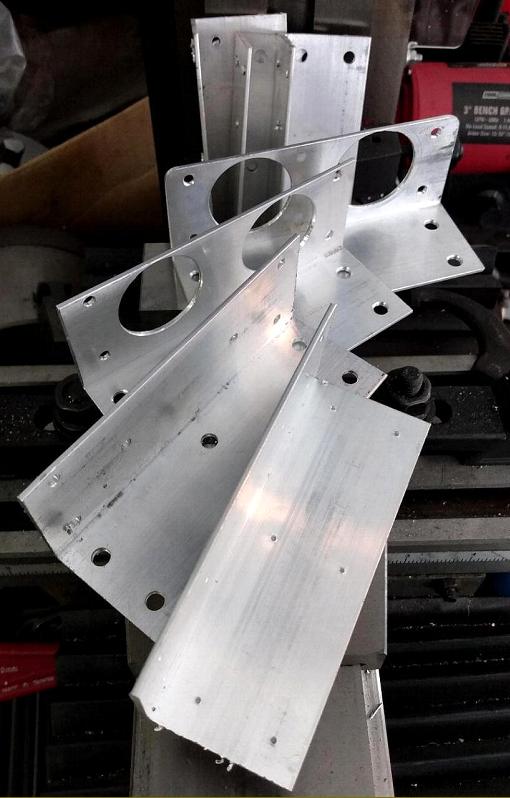

Our unique mounts and face plates are hand fabricated, one by one

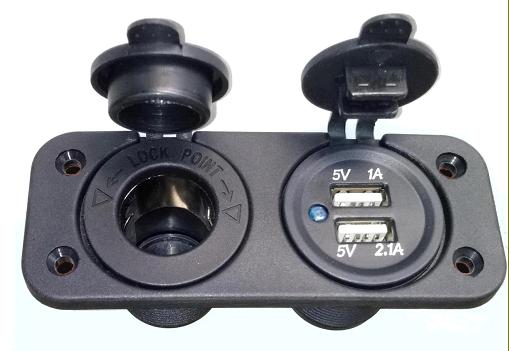

Standard Three Port Version

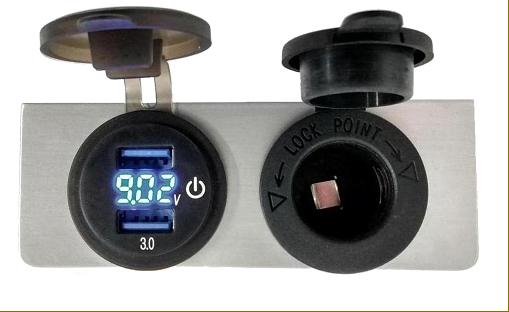

Three Port w/Volt Meter Version

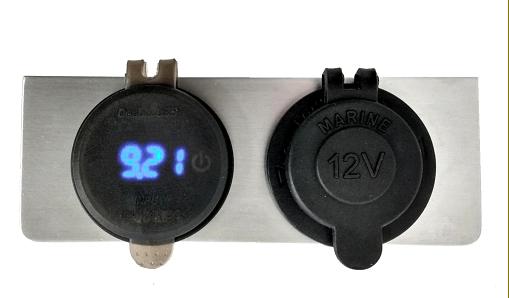

Three Port w/Volt Meter Version (w/ translucent cap closed)

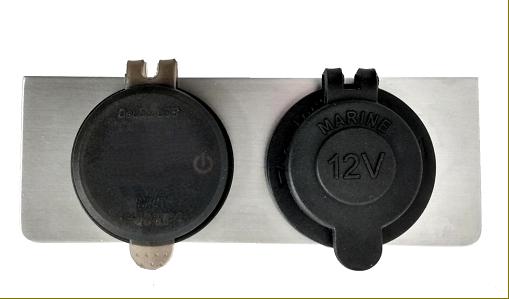

Three Port w/Volt Meter Version (w/ translucent cap closed and volt meter off)
SINGLE PORT MOUNT
This under dash mount is weather sealed and houses a 5v USB power/charging port putting out 2.1 amps. Just a simple connection to a 12 volt power source supplies you with all of the above at your nearest convenience. Use the male USB cord for a straight pass through connection from a data source as well if you wish.
