Relay wiring hints and tips:

CLICK HERE To see how to properly wire a fuel pump

CLICK HERE to see how to make fog lamps stay on with high beams

CLICK HERE to see how to make low beams stay on with high beams

HIGH POWER
CUT-OFF's
(click left)

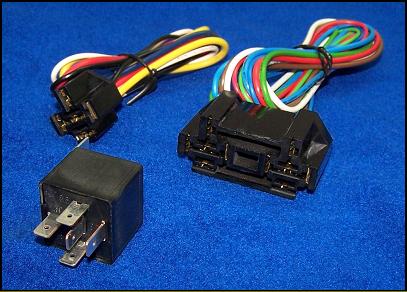

These high power Relay and Harness kits allow you to run high current draw devices with low current switches. Keeps switches cool and functioning properly while allowing unresisted power to be delivered to your high draw devices so they operate at peak efficiency. It is much safer to keep the high current out from under your dash as well as reducing motor noise from passing through the high draw wires into sensitive stereo receivers, communications equipment and gauges. Relay comes with an integral mounting bracket

Here is a more
economical relay
if you merely want to
slip female spade
connectors over the
individual terminals
without compromising
quality or reliability.

(
note: our plug and
  wiring harness will

not fit this relay)

Special
Sale!
$6.95

$9.95

30/40 Amp Single pole Double throw Relay 12vdc

$9.95

25 Amp JIDECO Single pole Double throw Relay 12vdc

Double relay Plug,
Harness and Lead Wires

$5.95

Single relay Plug,
Harness and Lead Wires
(
unlimited stackability!)

Example of our relay replacing a switched wire direct to a fuel pump

CLICK BACK TO TOP

Example of our relay allowing fog lamps remain on with high beams

CLICK BACK TO TOP

Many new vehicles with factory fog lamps automatically shut off when activating hi beams. This is usually embedded in the VCM and can not be altered. While there are conversion boxes out there which correct this for several Hundred dollars, just by using one of our relays you can make your fog lamps stay on with the high beam for under $16 in a few minutes for maximum light coverage and brightness. To the right is the simple wiring modifications needed using just one of our relays, and plug harnesses.

By utilizing either the factory upfitter switches or adding your own, you can also have complete control of your new conversion. It can operate normally as it does now, or flip the activation switch and (
1) the Fog lamps will stay on when the high beams are activated, or (2) even if the fog lamps are off if you activate the high beams it will automatically turn the For lamps on! Or switch back to normal mode.

While the diagram reflects a Ford Superduty, this can also work successful on other model and makes of trucks and cars.

Here is the single relay and plug wired and ready to be bolted on

Using the upfitter switches you can control the automation of the lamps

Here the new lead to the relay is added to the factory fog lamp plug

The completed tap into the fog lamp power lead is finished and ready to go

For the tap into the high beam, just location the high beam wire at the plug going into the headlamp bulb and tap into that and route to the relay. That's it!

Example of our relay allowing low beams to remain on with hi beams

CLICK BACK TO TOP

Most vehicles have either low or high beams, but not both at the same time. This would add tremendous illumination and blind spot coverage and is an easy modification just by using one of our relays you can make your low beams stay on with the high beam for under $16 in a few minutes for maximum brightness. To the right is the simple wiring modifications needed using just one of our relays, and plug harnesses.

By utilizing either the factory upfitter switches or adding your own, you can also have complete control of your new conversion. It can operate normally as it does now, or flip the activation switch and the low beams with stay on with the high beams, or switch back to normal mode.

While the diagram reflects a Ford Superduty, this can also work successful on other model and makes of trucks and cars.

For the tap into the high beam, just location the high beam wire at the plug going into the headlamp bulb and tap into that and route to the relay. That's it!
