Effective, Real world, Race & Street Proven Parts & Accessories
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
EACH SWITCH IS INDIVIDUALLY HAND TESTED BEFORE IT LEAVES!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
STARTER BUTTON
& STARTER SWITCH (click left)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
This high amperage-multi functional starter switch is ideal as a direct replacement or upgrading your original starter switching mechanism. The Key used is similar in appearance to the original Lucas® style Cobra keys, but easily reproduced for spares at most key shops.
Featuring an "Accessory" position to the left, and "Ignition-on" to the right with "Start" to the far right, this is a great upgrade to Cobra's not having the "accessory" feature to run electrical device without activating the ignition. Possible uses for this include lighting up special "show lamps" when parked or on display, using a radio, actuating the cigarette power outlet... and more.
This Super Heavy Duty switch was designed for Rough Service in Extreme conditions with a Smooth actuation and Solid locking mechanism. Each switch is meticulously and individually hand tested for proper electrical connectivity and mechanical operation here at Cobra Valley before they leave the building! Comes with 2 matching keys, trim face bezel & simple to follow detailed wiring diagram.
Handles 15 amps @ 12 vdc - Fits a standard 3/4" dash hole
Fits up to 1/4" dash depth with a 3/4" hole - (can fit up to 5/8" dash depth using a 7/8" hole)
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Optional: Custom Laser Engraved key face for added appearance or identification
(stamped key code is placed between upper and lower lines after keying to the lock)
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

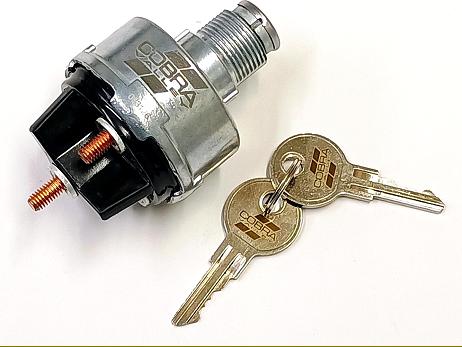

Key Lock Starter Switch
w/ 2 keys, Trim face bezel & Detailed Wiring Diagram
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Custom Laser Engraving on Key Faces
2 lines maximum - Each key can be same or different
Submit your wording on ordering - Add 2-3 days
Suggestions: Your name, car name, car brand, chassis number, phone number, return or reward info, "Ignition" identification, "Remove After Flight", and more...
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXAMPLE (Below): Cheaper inferior look-alike brands may look similar, but are not as smooth operating, secure, durable, long lasting or as high of electrical capacity. Even their appearance and fit and finish do not represent any level of quality with excessively protruding key bezels, cheap face ring, cheap housing, notchy operation, thin electrical contacts, etc..
|
|
|
|
|
|
|
|
|
|

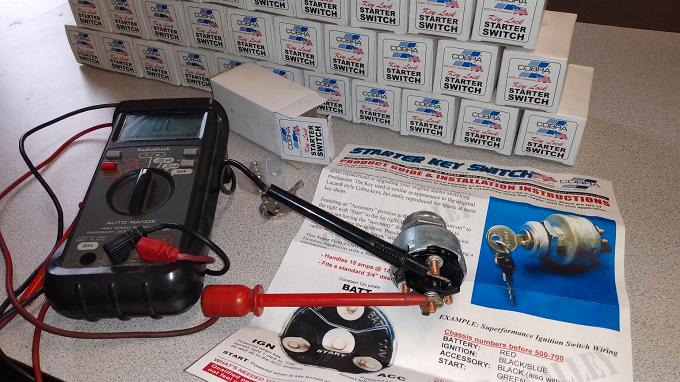

As a courtesy to our customers who reply on our products and just one more attention we pay to the details, we take each and every starter switch and test each of it's functions individually to make sure everything is working at tip-top performance before we ever even put them into the box!
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|

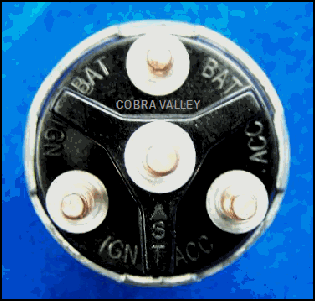

EXAMPLE: Superformance Ignition Switch Wiring
Chassis numbers before 500-700
BATTERY: RED
IGNITION: BLACK/BLUE
ACCESSORY: BLACK (also with white/blue wire)
START: GREEN
Chassis numbers after 500-700
BATTERY: RED (heavy gauge)
IGNITION: GREEN
ACCESSORY: RED (light gauge)
START: BLACK/YELLOW
|
|
|
|
|
|
|
|
