There are a few gaskets for the Superformance header collector, but we collaborated with the manufacturing facility to create a better, stronger, longer lasting trouble free gasket than ever before!
This new header collector gasket designed just for most Cobra header to side pipe collector flanges is thinner, more dense and does not cause the collector flanges to distort under compression! It solves all the concerns of previous gaskets and incorporates the ultra sealing qualities of the 100% flexible graphite material that reduces center flange burnout up to 3,000 degrees.
Much better sealing than even the custom made factory or aftermarket gaskets. - Fits many other brands, too!
Always use new Bolts & Nuts for every gasket change!
Our hand selected Premium Hardware Kit includes 16 Grade-8 bolts that won't stretch and loosen. The unique fine thread provide superior clamping power. The kit also includes 16 Grade-8(c) mechanical locking nuts that will not loosen and are completely unaffected by heat. Never have to re-tighten flange bolts again!
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Improved Hi Performance
Solid Graphite flange Gasket - 1/16"
for most Cobra* Header Collector Flange
use with straight, thick, non-distorted flanges
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Repair Gasket - Hi Performance
Solid Graphite flange Gasket - 1/8"
for damaged Cobra* Header Collector Flange
use with thin, distorted or warped flanges for
additional sealing up to 1/16" uneven gaps
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Hardware Kit - Bolts and Nuts
Grade 8 bolts and Top Lock nuts
5/16"x1.25" fine thread Grade 8 hardware
fits most flange thickness and up to 1/4" spacers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Hardware Kit - Bolts and Nuts
Custom bolt lengths f/thicker flanges
5/16"x1.75" fine thread Grade 8 hardware
For up to 1/2" flat or wedge spacers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
The amazing conformity and flexibility of the 100% Pure Graphite material fills in all scratches, gouges, pits, deformities, distortions and voids to provide a superior seal with maximum longevity and reliability!
|
|
|
|

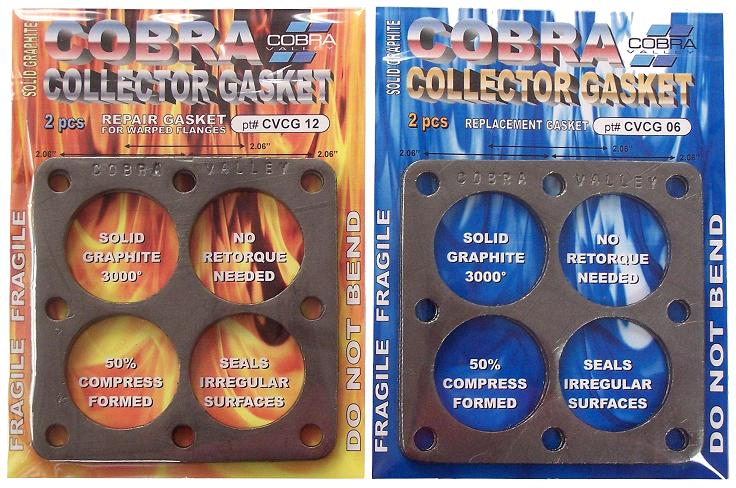

Shown are the thicker "Repair" version along side the thinner "Improved" version of this new gasket line up.
Use the Repair gasket to seal up deformed or warped flanges. Use the Improved version for normal applications.
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
These special gaskets likely fit other brand manufacturers and other applications not yet listed. So we included a diagram for you ro compare your own used gaskets to. Sometimes the comparisons are not exactly perfect, but this allows you to decide whether they will work for your specific application.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

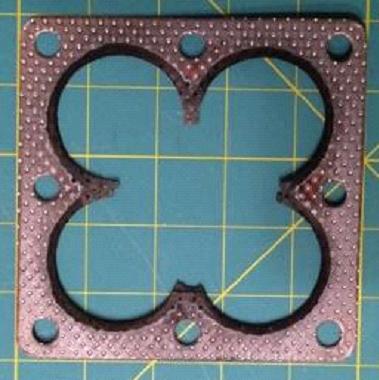

Notice the burned out edges of this popular aftermarket gasket modeled after the original equipment being removed after only a few hundred miles of usage when it began to create an exhaust leak.
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|

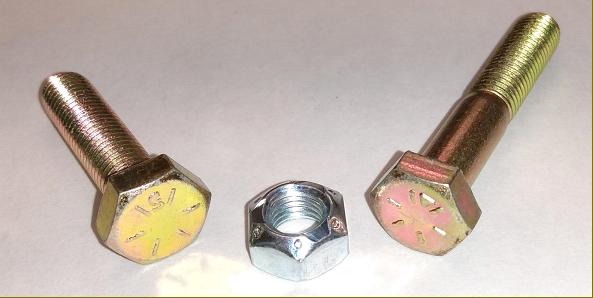

Our hand selected Premium Hardware Kit includes 16 Grade-8 bolts that won't stretch and loosen. The unique fine thread provide superior clamping power. The kit also includes 16 Grade-8 mechanical locking nuts that will not loosen and are completely unaffected by heat. Never have to re-tighten flange bolts again!
We have standard bolt and nut kits as well as custom hardware kits for thicker flanges, angled collector spacers and thick flat collector spacers. Just send us your measurements and we can put it together.
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
