STARTER TOGGLE SWITCHES (click left)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

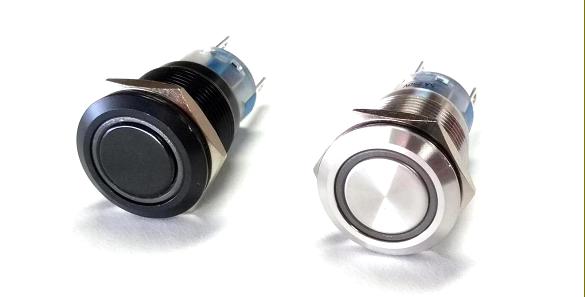

FLUSH MOUNT - LED HALO BUTTON SWITCHES

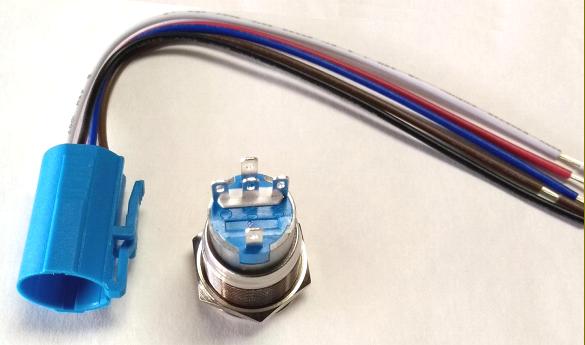

These super high quality metal momentary push button switches work perfect for starting your car, or actuating other devices as well. And while they look good just as they are, the halo ring surrounding the button can also be lit up in various different colors. You can choose to not light up the switch at all, or have it light up when the ignition system is turned on, and with some wiring, have it turn off when the engine is running. The one piece plug and wiring loom in the back of the button results in an easy in and out connection. Other applications would work well for actuating exhaust cut outs, intermittent wipers, flashing head or tail lamps, horns, etc. Use of a relay to power high power devices is suggested. Pre-wired plug and wiring loom included.
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push Button Starter Switch - Silver w/Red LED
3/4" Dia. Shaft - 5 A @ 12vdc - Momentary
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push Button Starter Switch - Silver w/Blue LED
3/4" Dia. Shaft - 5 A @ 12vdc - Momentary
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push Button Starter Switch - Black w/Red LED
3/4" Dia. Shaft - 5 A @ 12vdc - Momentary
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push Button Starter Switch - Black w/Blue LED
3/4" Dia. Shaft - 5 A @ 12vdc - Momentary
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push Button Starter Switch - Black w/White LED
3/4" Dia. Shaft - 5 A @ 12vdc - Momentary
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WIRING DESIGNATION:
RED: 12vdc power (for LED halo) Not necessary if LED is not used
BLACK: Ground (for LED halo) Not necessary if LED is not used
WHITE: Connection "in" for device to be operated
BLUE: Connection "out". Normally open (when switch is off. Actuated when button pushed)
BROWN: Connection "out". Normally closed connection (when switch is off)
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
SURFACE MOUNT - WEATHER RESISTANT BUTTON SWITCH
This high amperage-weather sealed push button momentary-on switch is typically used as a starter button, but can be used for a number of various other applications. The rubber sealed actuator button is soft and supple allowing easy actuation of the spring load push button underneath, providing secure deactivation as soon as the button is released.
Rated at 35 amps @ 12 volts, this button is designed to actuate most any starter solenoid as well as winch controls and other momentary electrical supply needs. This Push Button Switch will surely get you started every time!
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push Button Starter Switch
5/8" Dia. Shaft - 35 A @ 12vdc - Momentary
|
|
|
|
|
|
|
|
|
|
|
|
|
|
